simulation of bone surgery

Dan Morris, Chris Sewell, Doug Wilson, Nikolas Blevins, Federico Barbagli, Sabine Girod, and Kenneth Salisbury

[Overview]      [Temporal bone surgery]      [Craniofacial surgery]      [Dental surgery]

We are developing a visuo-haptic environment for simulating a variety of surgical procedures whose core component is bone drilling. The core environment is flexible, and has been used on otologic, craniofacial, and dental datasets. This page contains a high-level description of the system and screen shots/movies representing each of these applications. For more detailed technical information about the underlying environment, see our publications based on this environment:

Environment Description

Analysis and Metrics

bone surgery simulation: overview

Our simulation runs on a dual-CPU Windows PC, and was developed in C++. OpenGL is used for graphic rendering (optionally in stereo, via shutter glasses or a HMD), and two SensAble Phantom haptic devices are used for simulating a drill and a suction device. We typically use a Phantom 1.0 for the drill and a Phantom Omni for the suction device. Sound is rendered as a noisy sum of harmonics, whose frequencies are based on experimental recordings of surgical drill burrs.

Several features, including sound and dynamic bone dust movement, are best demonstrated via video; each section below contains a link to a short movie. Most of the movies are encoded in mp4, either as QuickTime mp4 files or as avi files. If you have trouble playing them, I recommend downloading the 3ivx codec, a nice (free) mp4 codec package.

This video (wmv) is an overview of the system, showing several clinical applications simultaneously.

haptic simulation of bone

application 2: craniofacial surgery

of craniofacial surgical simulation This video (QuickTime mp4) demonstrates basic drilling on the surface of the skull, near a mandibular fracture. The user is making the first fracture typically introduced in a distraction osteogenesis procedure. Note that as the tool approaches the alveolar nerve, the virtual nerve monitor provides a visual and auditory warning. For demonstration, the user then exposes the nerve visually.

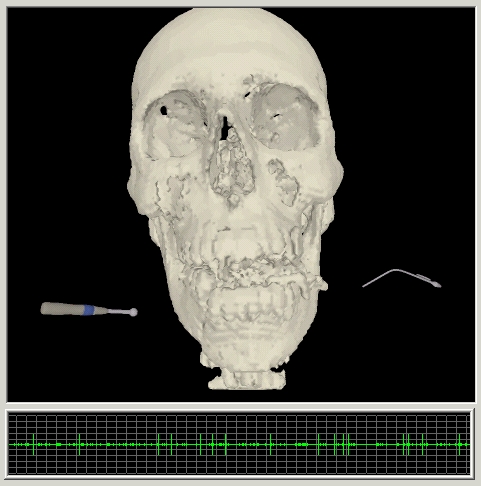

image of craniofacial surgical simulation This image displays a complete skull, originally derived from a CT scan. The CT data was isosurfaced to isolate the bone, then converted into the simulation environment's volumetric representation.

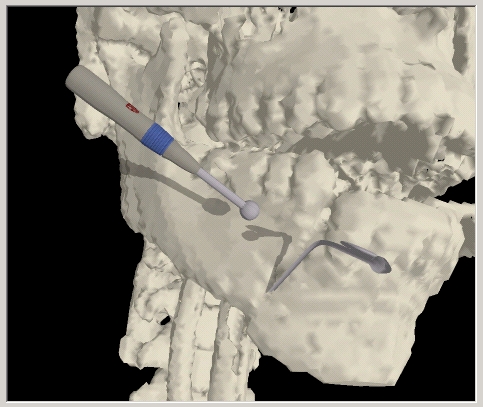

image of craniofacial surgical simulation Here the user prepares to begin drilling near a mandibular fracture. Shadows again provide a useful depth cue, although depth presentation is enhanced significantly by the optional stereo display.

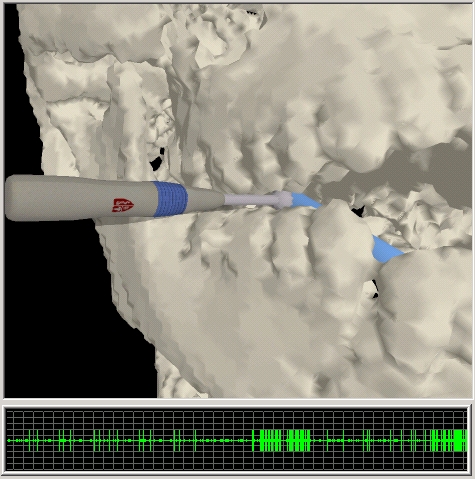

image of craniofacial surgical simulation with neurophysiology monitor Here we represent a virtual nerve in blue, for visual clarity. Note the bursts of activity on the neural monitor, which result from close contact between the drill and the virtual nerve.

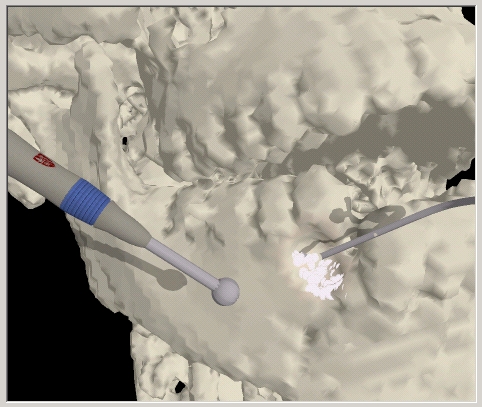

image of craniofacial surgical simulator with bone dust simulation The user begins to drill on the surface of the bone. Again, bone dust accumulates and obscures the user's view until suction is applied.

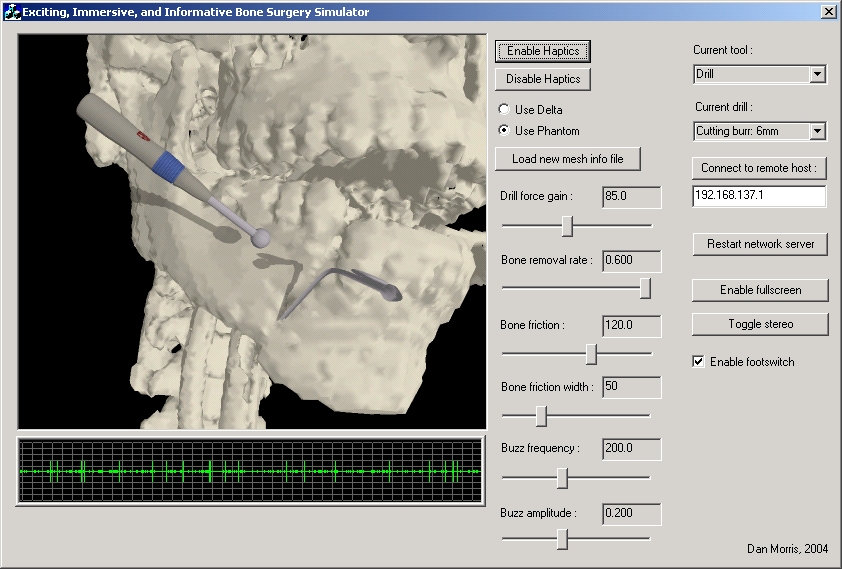

image of craniofacial surgical simulation with gui This image demonstrates the complete GUI available in the training mode of our simulation. Note the ability to toggle among multiple drill head types and sizes, the ability to connect to a remote copy of the application to demonstrate drilling technique over the network (visually and haptically), and the variety of haptic parameters that can be modified. Normally these would not be modified during a training procedure, but we use these parameters as a way of allowing an experienced surgeon to tune the haptic feedback provided by our system.

application 3: dental surgery

video of haptic dental
simulation This video (QuickTime mp4) demonstrates basic drilling on the surface of a tooth, illustrating the flexibility of our environment in loading diverse data sets.

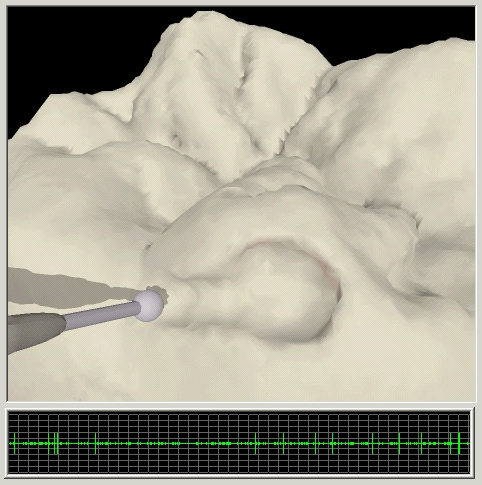

Additional images provide more detailed views of the bone surface during simulated drilling...

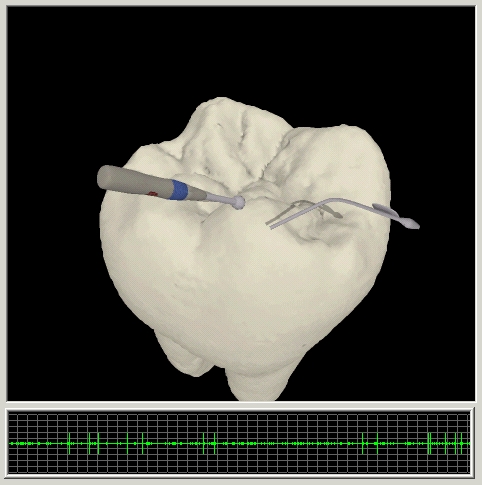

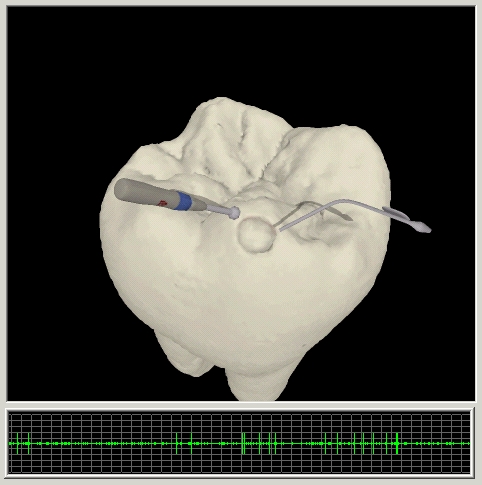

image of dental simulator image of dental simulator image of dental simulator image of dental simulator
